Concrete Finishing Power Trowel

Powerful Engine: The machine is powered by a robust 16kw engine, ensuring strong and reliable performance across different job sites.

High-Speed Grinding: A grinding motor speed of 3600rpm allows the machine to efficiently handle a 2000mm working width, boosting productivity and output.

Ride-on Operation: The operator can ride on the machine, which reduces physical exertion and increases comfort during extended use.

Diverse Grinding Options: Equipped with two grinding plates and eight abrasive discs, the machine is adaptable for various concrete surfaces and finishing tasks.

Speed Variability: The output speed is adjustable from 0-138r/min, allowing the machine to be customized for different ground conditions and finishing needs.

Contact Now E-Mail Telephone WhatsApp

Product Details

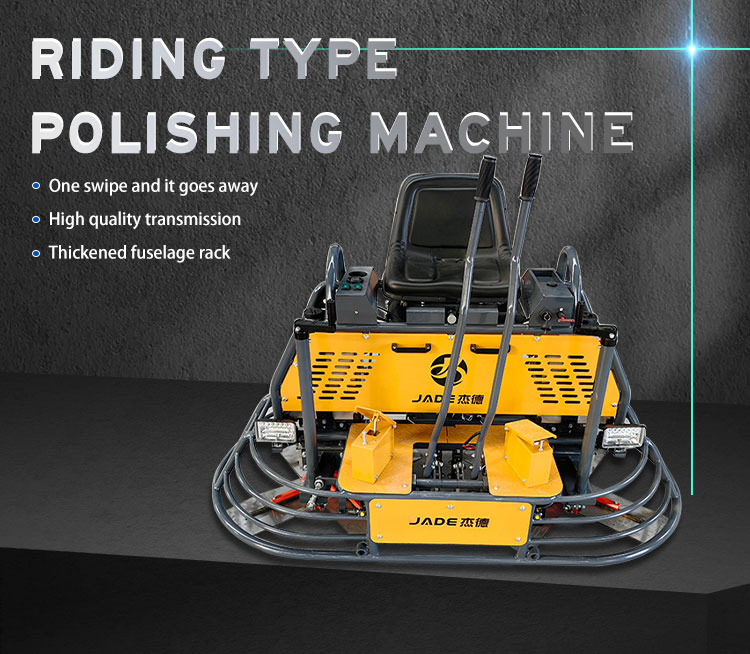

Product Introduction:The JADE-836DT Ride-on Concrete Ground Concrete Finishing Power Trowel is a cutting-edge piece of equipment engineered for exceptional efficiency and performance in concrete ground construction. It combines a high-capacity power system with an ergonomic design, perfect for a variety of concrete ground finishing tasks.

Core Features:

Powerful Engine: The machine is powered by a robust 16kw engine, ensuring strong and reliable performance across different job sites.
High-Speed Grinding: A grinding motor speed of 3600rpm allows the machine to efficiently handle a 2000mm working width, boosting productivity and output.
Ride-on Operation: The operator can ride on the machine, which reduces physical exertion and increases comfort during extended use.
Diverse Grinding Options: Equipped with two grinding plates and eight abrasive discs, the machine is adaptable for various concrete surfaces and finishing tasks.
Speed Variability: The output speed is adjustable from 0-138r/min, allowing the machine to be customized for different ground conditions and finishing needs.
Sturdy Construction: Weighing 410kg and built with durable materials, the machine is designed for stability and long-term use.
Efficient Work Rate: The machine boasts a maximum work efficiency of 400㎡/h, which can considerably shorten project timelines and enhance productivity.
Elliptical Working Plate Design: The distinctive elliptical design of the working plate improves maneuverability and adapts well to varied ground conditions.
Effective Abrasive Disc Diameter: The 180mm abrasive disc diameter ensures effective treatment across a broad range of applications.

product model	836DT
Engine power (Kw)	16	Specification of grinding disc (mm)	2000
Rated speed (rpm)	3600	Blade angle (degree)	4-15
Working width (mm)	2000	Number of grinding discs (each)	2
Weight of the whole machine (Kg)	410	Number of grinding discs (units)	8
Working disk shape	oval	Output speed (r/min)	0-138
Milling disc type	tetradaculatus	Walking mode	Drive type
Work efficiency Max(㎡/h)	400	Wheel diameter (mm)	180
Packing size (mm)	205011001170	Main body size (mm length x width x height, excluding handrails)	200010501150

Concrete Finishing Power Trowel

Applicable Scenarios:

Industrial facility construction
Commercial and residential developments
Warehouse and logistics centers
Parking lots and other large-scale concrete ground projects

Packaging and Transportation:

The machine is packaged in dimensions of 2010X1170X1250mm, which facilitates convenient transportation and swift setup at construction sites.

The JADE-836DT Ride-on Concrete Ground Concrete Finishing Power Trowel is a top choice in the field of concrete construction, providing a combination of performance, efficiency, and dependability that is hard to match.
