Professional Concrete Grinding Solution: Guide & Equipment

Professional Concrete Grinding Solution: Guide & Equipment

—Master advanced techniques paired with top-tier machinery to achieve unprecedented efficiency and quality

1. Why Professional Grinding is Foundational

"Without proper techniques, even the best equipment performs at ≤50% potential"

Concrete grinding impacts:

✅ Coating adhesion: Creates ideal substrate for epoxy/polyurea

✅ Lifespan: Eliminates voids/cracks, extending service life by 50%+

✅ Commercial value: Mirror finishes elevate brand perception in retail spaces

2. 5-Step Professional Grinding System (with Equipment Selection Keys)

Step 1: Machine Selection – Where Efficiency Meets Precision

▸ Critical specs:

Width >400mm: Minimizes overlap (450mm recommended)

Variable frequency control: Seamless 300-1800r/min adjustment

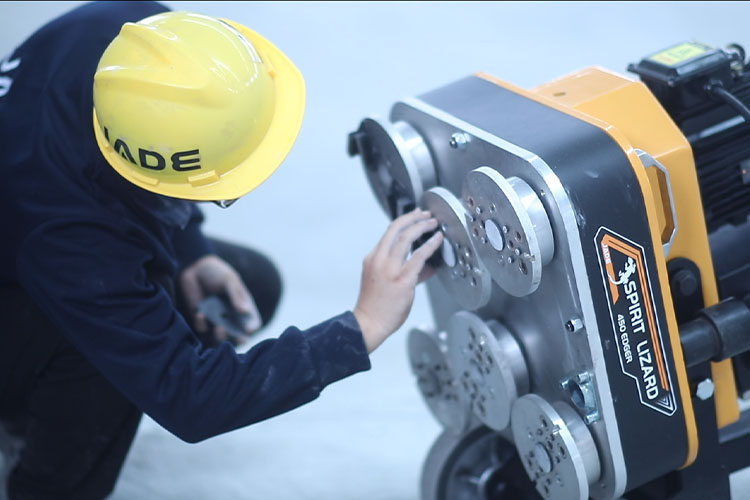

Multi-head design: 6 discs × 2 segments = 3× single-disc efficiency

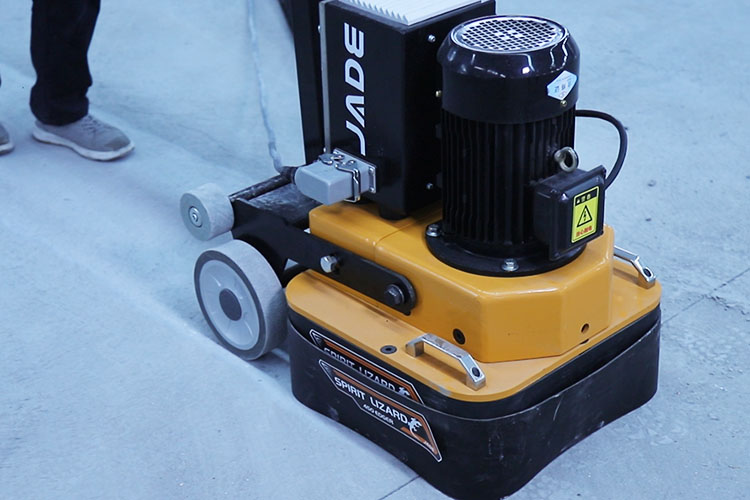

*Benchmark model: JADE-450SH with 12 diamond segments, 300m²/h max output*

Step 2: Tooling Strategy – Matching Abrasives to Concrete

Step 3: Pre-Treatment – The Overlooked Game-Changer

Moisture test: Delay if >4% RH (JADE-450SH's IP54 motor resists humidity)

Crack repair: Inject epoxy into >3mm cracks

Elevation mapping: Laser-mark uneven areas

Step 4: Grinding Execution – Industrial Equipment's Edge

The JADE-450SH Advantage in Action

1. Initial Coarse Grinding Phase

Mechanical Advantage:

154kg machine weight + rubber damping system generates consistent downward pressure (18-22kgf/disc)

Critical Outcome:

Eliminates surface inconsistencies without operator force variation

2. Uniform Advancement Control

Drive System:

Synchronous belt transmission ensures 6-disc synchronization (tolerance <0.3mm)

Elimination of Defects:

› Zero wave patterns (surface deviation ≤0.5mm/㎡)

› No directional grinding marks

3. Precision Finishing Process

Electronic Control:

Veichi inverter enables stepless RPM adjustment (300-1800r/min)

Vibration Suppression:

› ≤2.5m/s² vibration at 1800r/min (ISO 28927-10 compliant)

› Mirror polishing without chatter marks

Step 5: Dust Control – CE-Certified Compliance

Dust extraction ≥2000m³/h (requires 4mm² dedicated circuit)

Operators must wear P100 respirators

3. Why Global Contractors Choose JADE-450SH

"When technique meets productivity, cost curves transform"

4. Success Case Studies: Synergizing Equipment & Technique

Project 1: Warehouse Floor Refurbishment

Process:

Coarse grinding (30# metal-bonded segments @ 500r/min) →

Fine finishing (150# resin-bonded segments @ 1200r/min)

Equipment: JADE-450SH with 12-segment configuration

Result:

✅ 2,500m²/day productivity – Exceeding client expectations by 30%

✅ 98% surface flatness compliance (≤2mm/3m variance)

Project 2: Luxury Mall Polishing

Process:

5-stage progressive refinement (80# → 150# → 400# → 800# → 1500#)

Equipment Advantages:

• Precision control: Veichi inverter maintained optimal RPM (no over-polishing)

• Ergonomic operation: Rubber damping reduced operator fatigue by 80% during 10-hour shifts

Outcome:

⭐ Achieved reflective 90+ GU gloss finish

⭐ 40% faster completion vs. traditional equipment

5. Our Commitment to Dealers & Contractors

• We deliver CE-certified productivity ecosystems – not just machines

• Logistics advantage: 70 units/40HQ → 22% lower shipping costs

• Technical support: Free Concrete Grinding Parameters Handbook

• Profit protection: Regional exclusivity + project case library

Take Action Now – Claim Your Custom Solution

Whatsapp: +8615095046021

WeChat: 15095046021

Email: fila@jadeequipments.com

Choosing JADE-450SH isn't just selecting equipment – it's guaranteeing +800m² daily throughput
